Lesson 38 How to Connect Power BI to SQL Server: A Step-by-Step Guide

Welcome back to Virvijay.com, your go-to place for mastering Power BI! 🎯

Power BI is great for visualizing data, but before that, you need to connect to a database. One of the most common data sources is SQL Server

In this blog, you’ll learn:

• ✅ How to connect Power BI to SQL Server.
• ✅ How to import and transform data.
• ✅ The difference between DirectQuery and Import Mode.
• ✅ Best practices for optimizing SQL connections.

1️⃣ Why Connect Power BI to SQL Server?

SQL Server is widely used for storing large datasets, and Power BI helps you analyze that data. By connecting Power BI to SQL Server, you can:

• ✔️ Pull real-time data from SQL tables.
• ✔️ Create dynamic reports and dashboards.
• ✔️ Use SQL queries to filter data before loading.

🚀 Example: Suppose you have a customer database in SQL Server. You can connect Power BI to SQL and analyze customer behavior, sales trends, and revenue growth.

2️⃣ How to Connect Power BI to SQL Server

Step 1: Open Power BI Desktop

Launch Power BI Desktop on your computer.

Step 2: Click on "Get Data"

• 1️⃣ Go to Home → Click on Get Data.
• 2️⃣ Select SQL Server from the list.
• 3️⃣ Click Connect.

Step 3: Enter SQL Server Details

• 1️⃣ In the Server Name field, enter your SQL Server address (e.g., ServerName\SQLInstance).
• 2️⃣ Choose Database Name (optional).
• 3️⃣ Select either:

• Import Mode (Loads the entire dataset)
• DirectQuery Mode (Fetches live data)

🚀 Tip: Use DirectQuery if you want real-time updates!

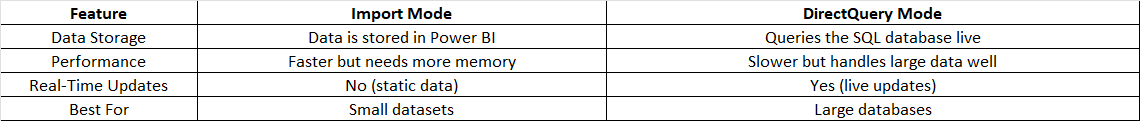

3️⃣ Choosing Between Import & DirectQuery Mode

🔹 Use Import Mode if you want fast performance.

🔹 Use DirectQuery Mode if you need live data updates.

4️⃣ Loading Data from SQL Server

After connecting, Power BI will show a list of tables and views from the database.

1️⃣ Select the tables you need (e.g., Sales, Customers, Orders).

2️⃣ Click Load to import data.

3️⃣ If needed, click Transform Data to clean and shape the data before loading.

🚀 Tip: Always remove unnecessary columns to improve performance!

5️⃣ Writing Custom SQL Queries in Power BI

Instead of loading full tables, you can use a custom SQL query to filter data.

Step 1: Select "Advanced Options" in SQL Connection

When entering the SQL Server details, you’ll see an option for "SQL Statement".

Step 2: Write a SQL Query

Example: Get only last 12 months' sales data

SQL

SELECT CustomerName, OrderDate, SalesAmount

FROM Sales

WHERE OrderDate >= DATEADD(MONTH, -12, GETDATE())

Step 3: Click "OK" & Load Data

🚀 Tip: Using SQL queries reduces the amount of data Power BI loads, improving performance!

6️⃣ Best Practices for Connecting Power BI to SQL Server

• ✔️ Load only the required data – Avoid importing unnecessary tables.
• ✔️ Use indexes in SQL Server – Speeds up DirectQuery performance.
• ✔️ Use aggregations – Pre-aggregate data in SQL before loading.
• ✔️ Avoid complex joins in Power BI – Do them in SQL if possible.
• ✔️ Schedule refreshes – If using Import Mode, set daily/hourly refreshes.

7️⃣ Conclusion: Power BI + SQL = Powerful Insights!

By connecting Power BI to SQL Server, you can:

• ✅ Access real-time business data.
• ✅ Run custom SQL queries to filter data before loading.
• ✅ Optimize performance with Import/DirectQuery mode.
• ✅ Create interactive dashboards from SQL datasets.

8️⃣ What’s Next?

📌 In the next blog, you’ll learn:

✅ How to Create Power BI Reports & Dashboards.

✅ How to use Row-Level Security (RLS) in Power BI.

✅ Tips for Power BI Performance Optimization.

🔔 Stay tuned to Virvijay.com for more Power BI tutorials!
